TestTRONIK SILVER COMPLETE ON CART

INCLUDING:
Add to your Quote Request List

SKU: TT1-SEC

FAVORITE CHOICE OF CUSTOMERS WITH VERSATILITY TO BE USED IN THE SHOP & OUTDOORS

PLUG AND PLAY DELIVERED MODELS 100% READY FOR USE!
This equipment is and upgrade of the Bronze edition with more features and a LED SCREEN equipped wireless remote control.

All mounted on a powder coated steel cart. (TT1-C)

INCLUDING

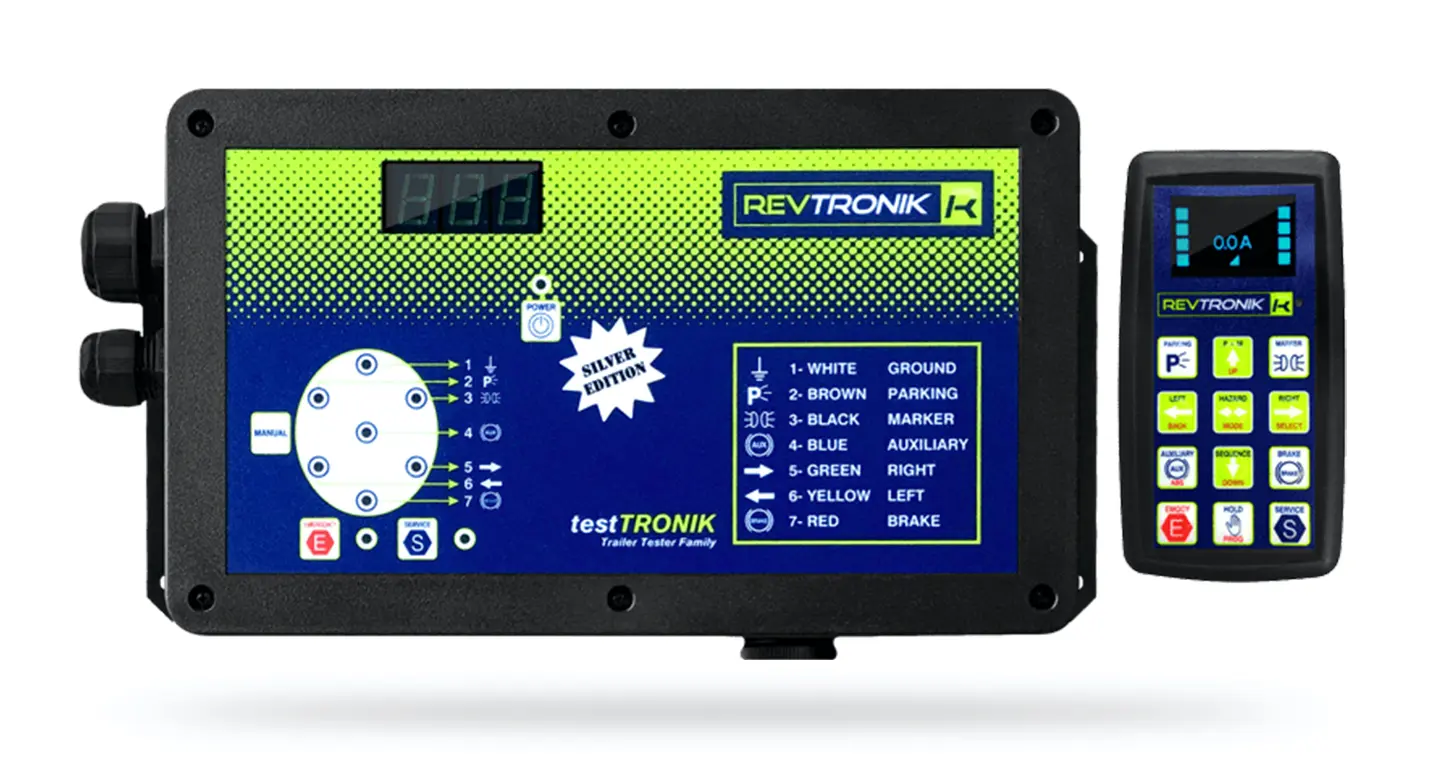

• Silver Electric Unit (TT1-SE)
• LED SCREEN Remote (TT1-SR)
• Base Bracket – 45° powder coated metal.

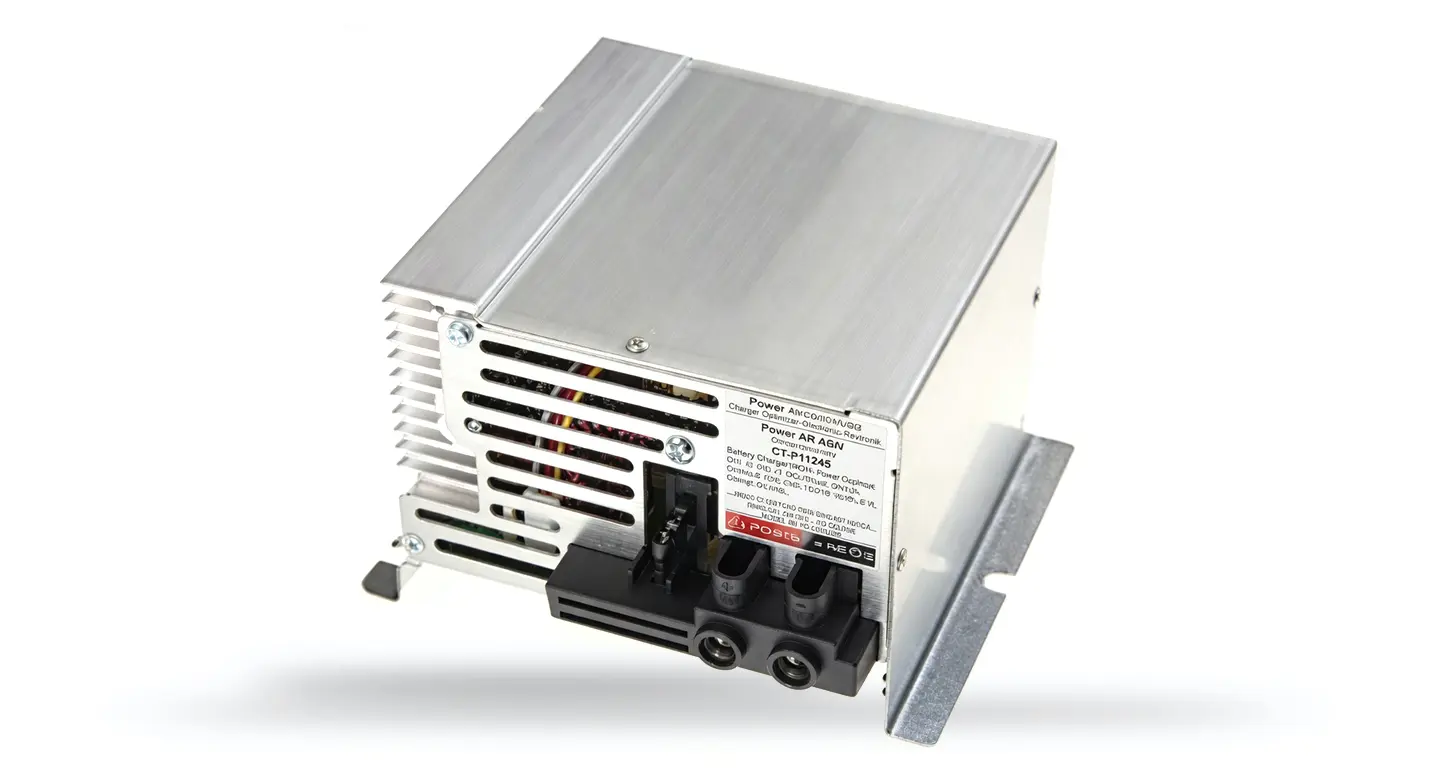

• 45 amp. Power Converter and Charger (CT-P11245)
• Easy install Wall Kit Brackets (TT1-WK)
• 12′ electrical cord.
*Wire can also be supplied in made to measure lengths.

GLOBAL FEATURES
• Wireless LED SCREEN technology puts all the information right in your hand.
• Automatic electrical diagnostic sequence test.
• Automatic electrical verification and diagnostic tests.
• Analyzes trailer ground quality.

LED SCREEN REMOTE CONTROL FEATURES:
• 12 Channel, bidirectional, 2.4 Ghz
• FCC approved, 200 foot range rated technology.
• No blind spots, working distance increased without any interference.
• Transparent remote dust cover included.
• Logos on remote indicates what is applied.

UNIT FEATURES:
• Every single electrical circuit can be activated using the remote.
• Analyzes each electrical signal to help isolate cross, open, overloaded and shorted circuits.
• Manual, remote and automated mode available for all electrical circuits
• Current drain, accurate to 0.1 Amps., displays on LED Screen.
• Capable of accessing ABS blink codes.
• Cross wires, short circuit, open circuit instantaneously appear on the remote’s LED screen.
• Allows voltage and current modifications for ELECTRICAL BRAKE applications.
• Logos on remote indicates what is applied.
• Visible and audible alerts.

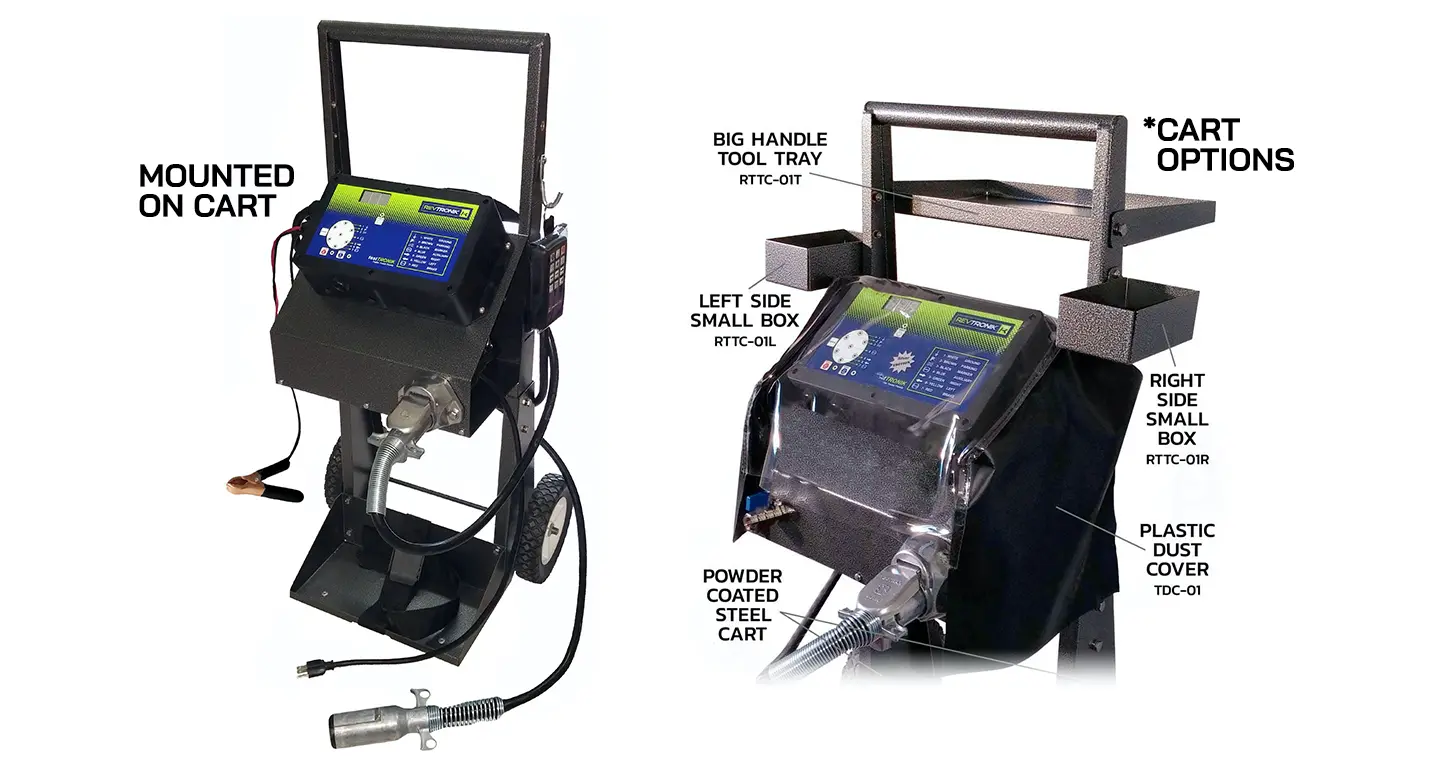

CART OPTIONAL PARTS REFERENCES
• BIG HANDLE TOOL TRAY(RTTC-01T)
• SMALL LEFT SIDE BOX (RTTC-01L)
• SMALL RIGHT SIDE BOX (RTTC-01R)
• ALL THREE BOXES (RTTC-01K)
• PLASTIC DUST COVER (TDC-01)
