ChargeTRONIK CT-P11225 25A CHARGER & POWER SUPPLY

INCLUDING
Add to your Quote Request List
SKU: CT-P11225
Row rect Shape Decorative svg added to bottom
PRODUCT DETAILS

CT-P11225 — 25 AMP
2-IN-1 MULTI-FUNCTION SINGLE UNIT

HIGH RELIABLE BATTERY CHARGER & POWER SUPPLY



Whether on the bench or in the field, the CT-P11225 switches between two roles in a single compact unit: a smart 25A battery charger and a stable DC power supply. Built for lead-acid (Pb) batteries, it combines a 3-stage charging curve with adjustable output voltage and current, giving technicians precise control without needing two separate devices.

KEY FEATURES:
  • Battery charger or power supply operation mode — selectable

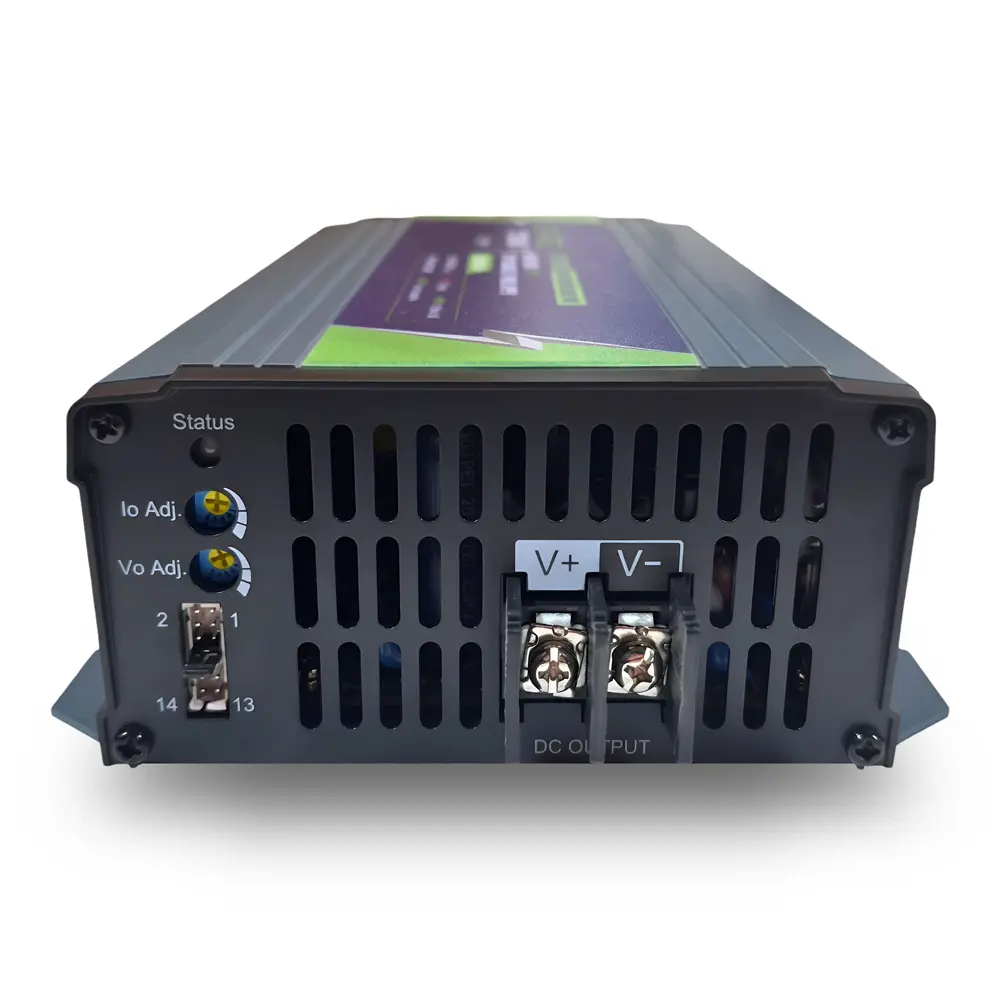

  • Output voltage (10.5–21 Vdc) and current (12.5–25 A) — adjustable via potentiometer
  • 3-stage charging curve for optimal battery life
  • Multiple built-in protections: DC output short circuit / over voltage / over temperature
  • Suitable for lead-acid (Pb) batteries
SPECIFICATIONS:

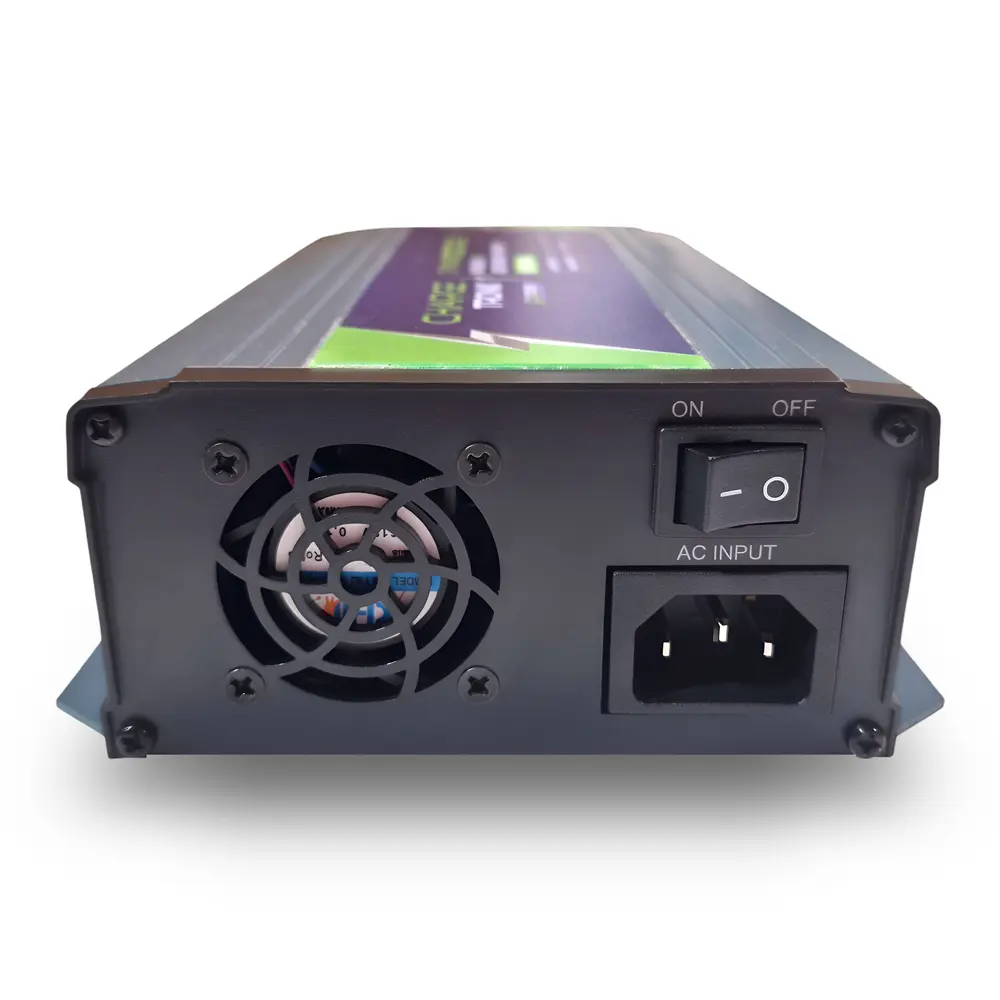

AC Input 100–240 Vac, 4.9 A, 50/60 Hz
DC Output 14.4 Vdc (10.5–21 Vdc), charger mode default; power supply mode selectable
Max Current 25 A
Max Power 400 W
Certifications E183223 · BS EN/EN60335-2-29 · BS EN/EN62368-1
LED INDICATION:
  • Charger Mode (default): RED = Charging · GREEN = Battery full
  • Power Supply Mode: GREEN = Normal operation
ADDITIONAL INFORMATION
WARNINGS:

For indoor use only. Produces explosive gases — ensure adequate ventilation during charging. Disconnect power before making or breaking the battery connection. Keep away from flames and sparks. Surface becomes hot during operation.
