TP4-WMK TIPTRONIK WIFI KIT FOR HYBRID OR PUP TRAILER

INCLUDING
TP4 ICON TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik
WIFI gal icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning Revtronik
8X gal icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning GPS Revtronik
A TipTRONIk Product maid by RevTRONIK
TP4 WM gal.solo TipTRONIK Dump Truck Tipper Raised Dump Box Alarm Warning System WIFI GPS Revtronik
TP-SR154m 8x SENSOR TipTRONIK Tipper Raised Dump Box Alarm Warning Systems WIFI GPS OPTIONS Revtronik
TP PC4 Power Cable WM Serie Dumper Tipper Raised tip Alarm Warning System WIFI GPS Revtronik
Add to your Quote Request List
SKU: TP4-WMK (HY-PUP) (B157)
+ADD TO QUOTE
Row rect Shape Decorative svg added to bottom
PRODUCT DETAILS

WIFI TIPTRONIK
TP4-WMK AND BRACKETS KIT FOR DUMP TRAILER SETUP

*WORKS WITH WIFI SYSTEM ONLY*

Hybride Trailer Dumper RevTronikPup-Trailer Dumper RevTronik

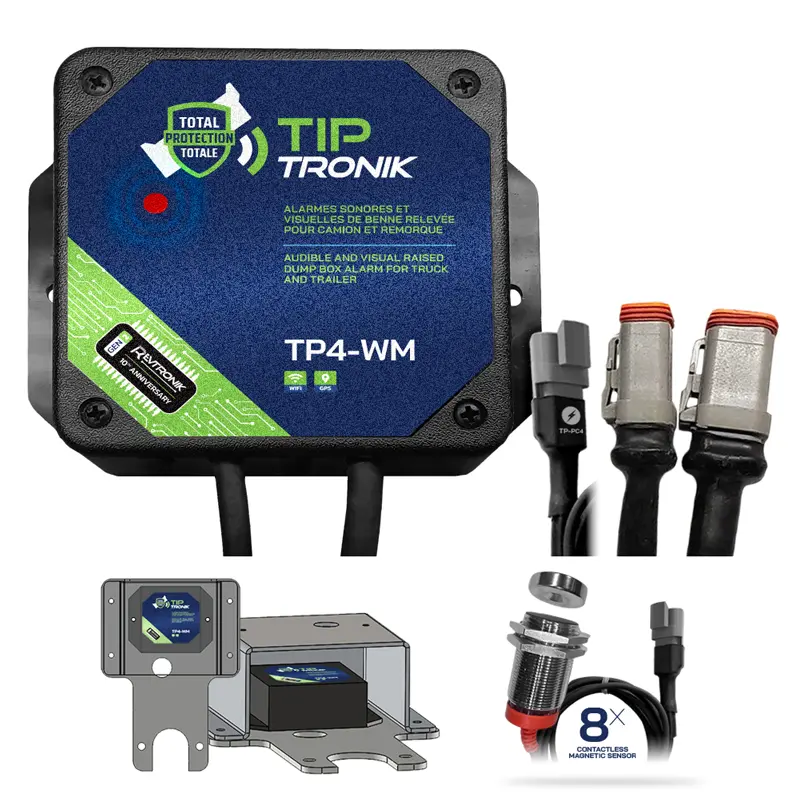

TP4-WMK INCLUDES

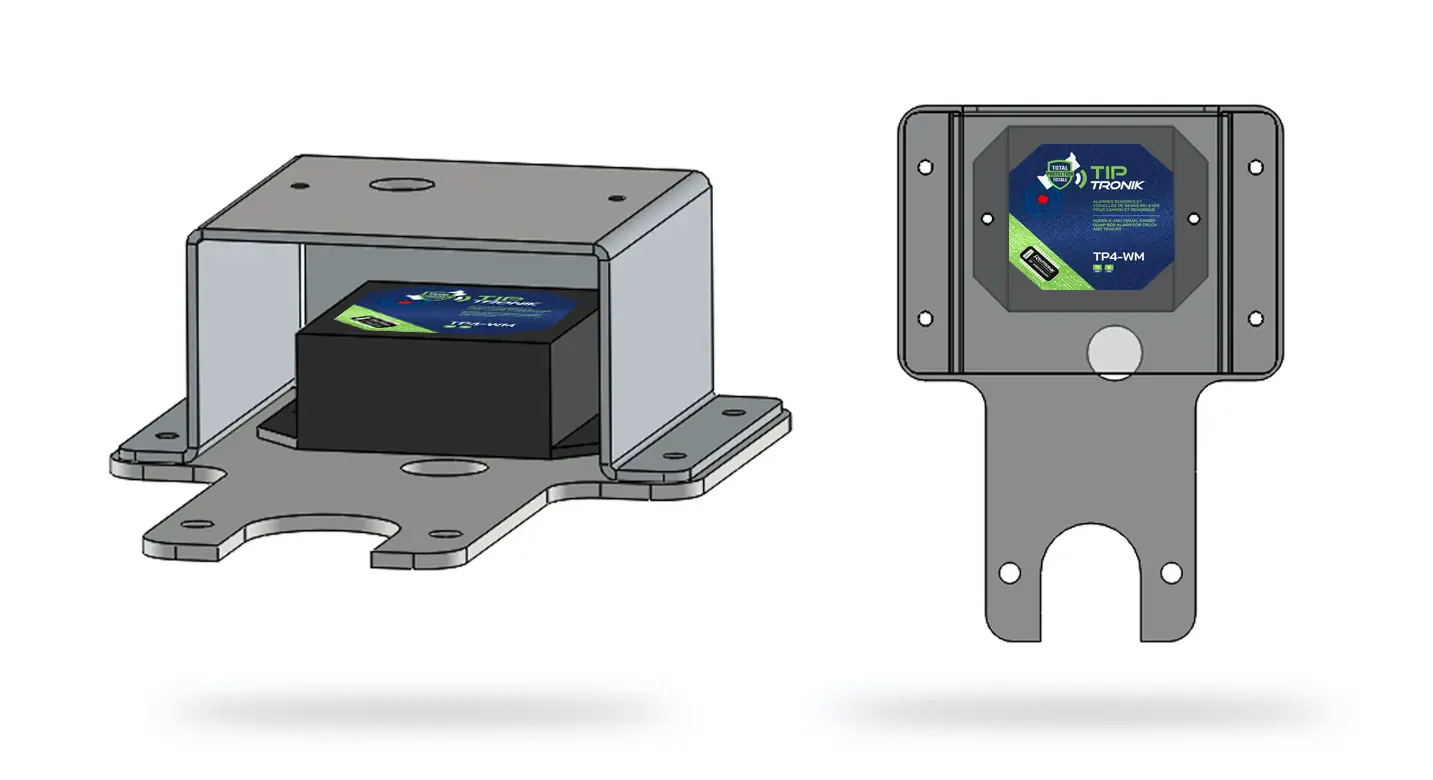

The TP4-WM electronic epoxy filled box for long life and easy installation with standard Deutsch connector, the 12V Power Cable, the 8x Contactless Sensor, the protection and mounting braket TP-B157. *Note it could also be possible to put a wired kit to have a hybrid system working with or without wire. You can add Other items of this kit or Compatible product line individually below on this page to complete your needs.

TP4 ICON TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik
✔︎ NEWEST GENERATION

ABOUT THE TP4-WMK

The main advantage of the wireless system is that any truck with a TP4 in the cab can synchronize to a trailer in less than 15 seconds. Guest trucks can even use a TP4-Portable and truck-to-truck module to be up and running and protected in seconds.

WIRELESS SYSTEM
The TP4 series represents the latest evolution in our TipTRONIK technology, combining all the advantages of our previous generations with our innovative Wifi-TRONIK wireless communication technology which greatly facilitates and speeds up its installation.

NO WIRE BETWEEN TRUCK AND TRAILER
In addition, the WIFI function allows you to communicate remotely with your module. Even without the use of trailers, this precious communication makes it possible to program the module remotely with a computer, to make updates, to activate or deactivate current or future options. Thus, the TP4 is scalable and will follow you for a long time.

CLIC ICONS FOR MORE..

TP4-WMK TECHNICAL FEATURES
WIFI icon Revtronik
GEN2 Icon		 UPDATES & USER PREFS:
New smartphone simplified update and programming system.
LATEST GEN2 WIFI:
No wires between truck & trailer !
SENSOR Icon lights TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik SENSORS:
NEW 8X MAGNETIC SENSORS instead of a contactless sensor, allowing us to extend the operating range by nearly ten times that of our previous sensors.



PRODUCT INCLUDED FEATURES

WIFI icon Revtronik
THE

WIFI

GEN2 Icon

NO MORE WIRE BETWEEN TRUCK AND TRAILER !
The primary advantage of installing a wireless wifi system with TP4 in your truck is the ability to sync any trailer in under 15 seconds using the truck's sync button. For drivers without an installed system who need to use your trailer, the Portable Edition can be mounted in any truck in less than 15 seconds ensuring lightning-fast setup every time.

Programable User Options Preferences ICON TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI RevtronikREMOTE COMMUNICATION
In addition to the simplicity of a wireless system, the wifi allows remote communication with the module box, even without a synched trailers, it's possible to program the system remotely from smartphones or computer for updates, user options and system activations parameters. TP4 is scalable and will follow you for a long time!

THE NEW CONTACTLESS

8X MAGNETIC SENSOR

The NEW CONTACTLESS 8X MAGNETIC SENSORS instead of a contactless mechanical or optical sensors, provide a larger extended operating range by nearly ten times of our previous sensors. It is not mechanical or optical and it conforms, and even more, exceeds all of North America's highest and official regulations. More flexible on installation options of optimal security coverage of raised dump box alarms!

COMPATIBILITIES

For TipTRONIK wireless trailers.

ADD ITEMS SEPARATELY FROM THIS KIT


COMPLETE YOUR KIT

ADD AVAILABLE & COMPATIBLE PRODUCTS THAT ARE NOT INCLUDED IN THIS KIT


ADDITIONAL INFORMATION

PRODUCT LINE CONSOLIDATION
& COMPATIBILITIES

TP4 : THE UNIVERSAL SOLUTION !
The TP4 replaces both TP2 and TP3 models with a single solution for all vehicle types. Compatible with existing TP2-TP3 systems, accessories, and both wired and wireless setups, the TP4 adapts to dump trucks and straight trucks based on operational requirements.


Installation Icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning GPS WIFI Revtronik

INSTALLATION

The installation of our TipTRONIK is truly one of the easiest and fastest in its class. For a quick installation, everything is included in the box. Just pick your favorite spot around or inside the console of the truck and plug it into an ignition type power source. Choose where you want to place the contactless sensor and connect it to the TipTRONIK module and your installation is complete.


TRAILER INSTALLATION

For a quick installation, everything is included in the box. Simply plug in a constant 12 volt power source like ABS to the WiFi module and install the contactless sensor in the right place. With these series, some customers are now using TP-B05 + TP-BSR or TP-B157 combined with a 25ft wired extension (TP-JS25E) to allow the sensor to be installed at the rear of the trailer. This new positioning helps the operating efficiency of the sensor to compensate for the flexibility of the front of the trailer and the frame which can cause false alarms.


Approved Certified Icon TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik

APPROVED
INSTALLATIONS

While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.

FIND YOUR AUTHORIZED DISTRIBUTOR
IN ONE CLICK


Map Pin Revtronik

Weight 2 lbs
Dimensions 6 × 8 × 1.5 in
Compatible

For TipTRONIK wireless trailers.

Additional & compatible parts, brackets and protections
