TP4-TCB1: WIRED KIT FOR 2nd TRAILER +MOUNTING BRACKETS

INCLUDING
A TipTRONIk Product maid by RevTRONIK
TP-SR154m 8x SENSOR TipTRONIK Tipper Raised Dump Box Alarm Warning Systems WIFI GPS OPTIONS Revtronik
TP-TCB 7 PINS Dual Connector TipTRONIK Dumpers Raised Dump Box alarm warning system WIFI GPS Revtronik
TP STC15 Power Cable WM Serie Dumper Tipper Raised tip Alarm Warning System WIFI GPS Revtronik
TP B09 bracket plate TipTRONIK Dumpers Raised Dump Box alarm warning systems WIFI GPS Revtronik
TP BSR support braket TipTronik Trailer Dumper Tipper Alarm Warning System WIFI GPS Revtronik
Add to your Quote Request List
SKU: TP4-TCB1
+ QUOTE
PRODUCT DETAILS

TP4-TCB1 FOR SECOND TRAILER

*ONLY WORKS WITH TRUCKS EQUIPPED WITH A WIRED SYSTEM*

Wired Setup TipTRONIK Dump Truck Tipper Raised Dump Box Alarm Warning System Wifi GPS options Revtronik

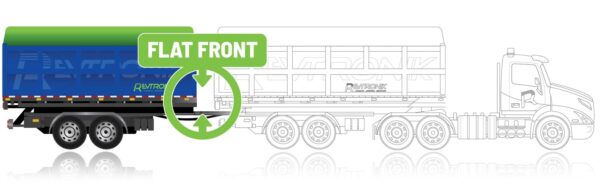

B TRAIN Second Trailer Flat Front Frameless TipTRONIK by RevTRONIK

This standard system is particularly popular in the dump truck industry for second B-Trains. While it delivers all the premium features of our high-quality electronics, this model does not include WIFI capability. Note that nearly 95% of customers prefer our WIFI-enabled systems for true wireless operation between truck and trailer. This kit operates with a wired connection between components.

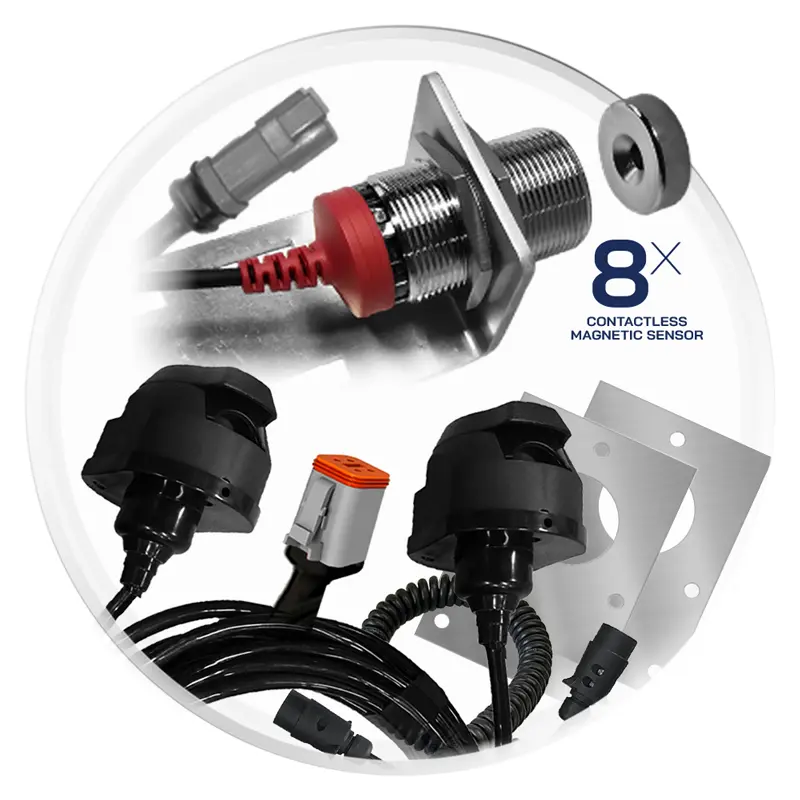

The TP4-TCB1 set includes the 35 Foot Cable Double-4-Pins Connector, two Mounting Plates for the receptacle and sensor if necessary, the 8x Contactless Sensor, The Sensor Bracket, the Ultra Flexible 15′ Cable extension, the user manual and vehicle compliance decals.



PRODUCT INCLUDED FEATURES

THE NEW CONTACTLESS

8X MAGNETIC SENSOR

The NEW CONTACTLESS 8X MAGNETIC SENSORS instead of a contactless mechanical or optical sensors, provide a larger extended operating range by nearly ten times of our previous sensors. It is not mechanical or optical and it conforms, and even more, exceeds all of North America's highest and official regulations. More flexible on installation options of optimal security coverage of raised dump box alarms!



ADD ITEMS SEPARATELY FROM THIS KIT

ADDITIONAL INFORMATION

Installation Icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning GPS WIFI Revtronik

The electrical Installation is very quick and simple and mainly installed at the front of the trailer. The standard installation of our systems is quick and easy. Find the place where you want to install the heavy duty 7-wire socket, use the aluminum support provided if necessary, then install the sensor preferably in a horizontal orientation in the front of the trailer and plug everything together. *Some installation may vary.

Some customers use the 25 foot wired extension to allow the installation of the sensor at the rear of the trailer. This new positioning helps the operating efficiency of the sensor allowing it to compensate for the flexibility of the front of the trailer and the chassis which can cause false alarms. You can find this part in the list below.

Approved Certified Icon TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik

APPROVED
INSTALLATIONS

While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.

FIND YOUR AUTHORIZED DISTRIBUTOR
IN ONE CLICK


Map Pin Revtronik

Weight 2 lbs
Dimensions 6 × 8 × 1.5 in
