TP4-TC1

*ONLY WORKS WITH TRUCKS EQUIPPED WITH A WIRED SYSTEM*

Wired Setup TipTRONIK Dump Truck Tipper Raised Dump Box Alarm Warning System Wifi GPS options Revtronik

This standard system is particularly popular in the dump truck industry. While it delivers all the premium features of our high-quality electronics, this model does not include WIFI capability. Note that nearly 95% of customers prefer our WIFI-enabled systems for true wireless operation between truck and trailer. This kit operates with a wired connection between components.

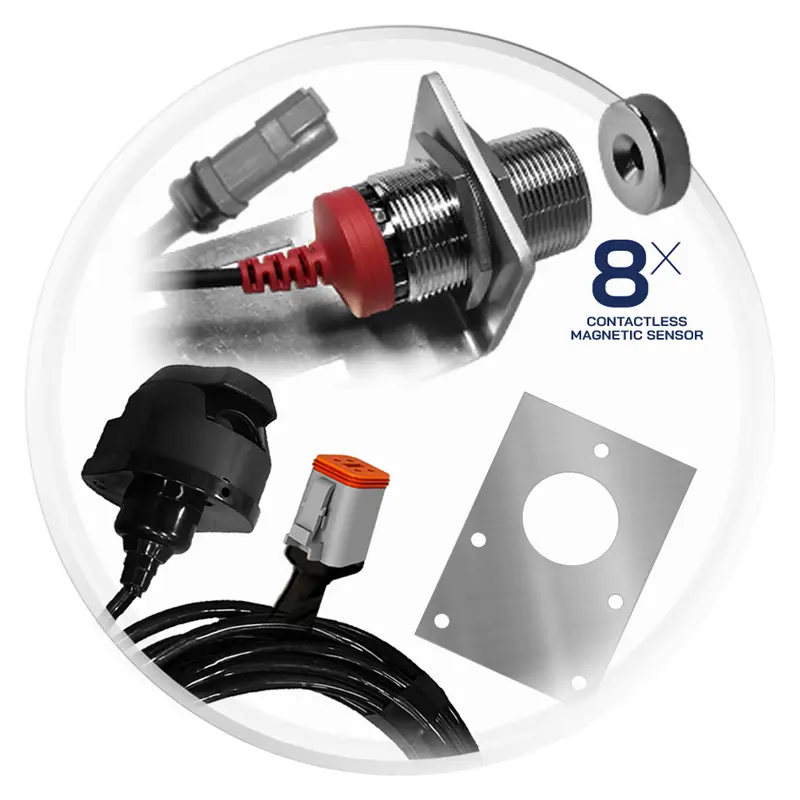

The TP4-TC1 set includes the 4-pins receptacle, the mounting plate for the receptacle and sensor if necessary, the 8x Contactless Sensor, The Sensor Bracket, the user manual and vehicle compliance decals.

PRODUCT INCLUDED FEATURES

THE NEW CONTACTLESS

8X MAGNETIC SENSOR

The NEW CONTACTLESS 8X MAGNETIC SENSORS instead of a contactless mechanical or optical sensors, provide a larger extended operating range by nearly ten times of our previous sensors. It is not mechanical or optical and it conforms, and even more, exceeds all of North America's highest and official regulations. More flexible on installation options of optimal security coverage of raised dump box alarms!

ADD ITEMS SEPARATELY FROM THIS KIT

ADDITIONAL INFORMATION

Installation Icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning GPS WIFI Revtronik

The electrical Installation is very quick and simple and mainly installed at the front of the trailer. The standard installation of our systems is quick and easy. Find the place where you want to install the heavy duty 7-wire socket, use the aluminum support provided if necessary, then install the sensor preferably in a horizontal orientation in the front of the trailer and plug everything together. *Some installation may vary.

Some customers use the 25 foot wired extension to allow the installation of the sensor at the rear of the trailer. This new positioning helps the operating efficiency of the sensor allowing it to compensate for the flexibility of the front of the trailer and the chassis which can cause false alarms. You can find this part in the list below.



Approved Certified Icon TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik

APPROVED
INSTALLATIONS

While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.

FIND YOUR AUTHORIZED DISTRIBUTOR
IN ONE CLICK


Map Pin Revtronik

Weight 2 lbs
Dimensions 6 × 8 × 1.5 in
