TP4-STK TIPTRONIK WIRELESS WIFI CAB UNIT

INCLUDING
TP4 ICON TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik
WIFI gal icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning Revtronik
8X gal icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning GPS Revtronik
A TipTRONIk Product maid by RevTRONIK
TP4 W front view TipTRONIK Dumper Raised Dump Box Alarm Warning System WIFI GPS Revtronik
TP4 W back view TipTRONIK Dumper Raised Dump Box Alarm Warning System WIFI GPS Revtronik
TP PBK Dumper Tipper Raised tip Alarm Warning System WIFI GPS Revtronik
Add to your Quote Request List
SKU: TP4-STK
+ QUOTE
PRODUCT DETAILS

Truck Cab Trailer Dumper Tipper Raised tip Alarm Warning System WIFI GPS Revtronik

WIRELESS WIFI TIPTRONIK TP4-STK
FOR TRUCK CAB INSTALLATION

*WORKS WITH WIRELESS SYSTEM ONLY*

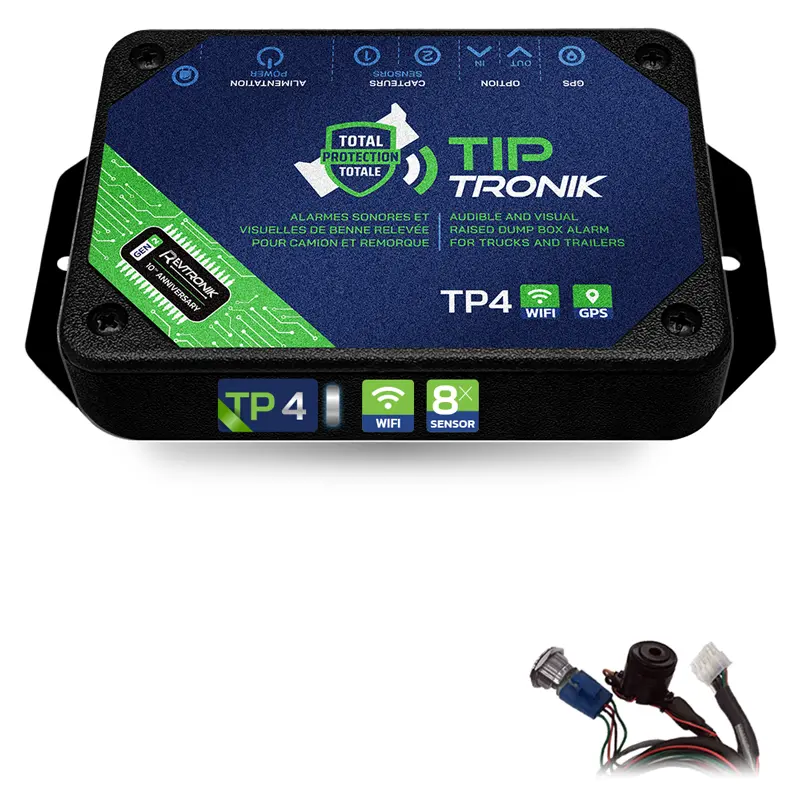

TP4-GTK INCLUDES

The TP4 module box with the 12v Power Cable & Illuminated Buzzer Button, two sets of wiring available for quick and easy installation, the user manual and vehicle compliance decals. It’s also possible to put a wired installation to have a hybrid system working with or without wire.*Note that you can add Other items of this kit or Compatible product line individually below on this page to complete your needs.

TP4 ICON TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik
✔︎ NEWEST GENERATION

ABOUT THE TP4

A NEW GENERATION of audible and visual alarms for raised dumpsters, developed as part of our GEN2 program. Our best seller TP4 is based on the largest truck industry user's EXPERIENCES AND FEEDBACK of our past TP2 & TP3 product lines history that is currently combined to all the advantages of our newest technology development!

CLIC ICONS FOR MORE..

TP4 TECHNICAL FEATURES
POD DASH BUTTON icon TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik POD DASH BUTTON:
Audible and multi-color illuminated Pod Dash Button for ease of use and installation on the dashboard.
GPS icon Revtronik SPEED DETECTION & BLACK BOX:
Adjustments : 3, 6, 9, 12 km/h.
Improved event recording system as aircraft black box systems.
WIFI icon Revtronik
GEN2 Icon		 UPDATES & USER PREFS:
New smartphone simplified update and programming system.
LATEST GEN2 WIFI:
No wires between truck & trailer !
SENSOR Icon lights TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik SENSORS:
NEW 8X MAGNETIC SENSORS instead of a contactless sensor, allowing us to extend the operating range by nearly ten times that of our previous sensors.
COMPARING ICON TipTronik Trailer Dumper Box Tipper Raised Alarm Warning WIFI GPS Revtronik IN/OUT:
⍇ 2 PROGRAMMABLE  INPUTS
⍈ *OPTIONAL 2 PROGRAMMABLE OUTPUTS.



PRODUCT INCLUDED FEATURES

WIFI icon Revtronik
THE

WIFI

GEN2 Icon

NO MORE WIRE BETWEEN TRUCK AND TRAILER !
The primary advantage of installing a wireless wifi system with TP4 in your truck is the ability to sync any trailer in under 15 seconds using the truck's sync button. For drivers without an installed system who need to use your trailer, the Portable Edition can be mounted in any truck in less than 15 seconds ensuring lightning-fast setup every time.

Programable User Options Preferences ICON TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI RevtronikREMOTE COMMUNICATION
In addition to the simplicity of a wireless system, the wifi allows remote communication with the module box, even without a synched trailers, it's possible to program the system remotely from smartphones or computer for updates, user options and system activations parameters. TP4 is scalable and will follow you for a long time!

*AVAILABLE !

OPTIONNAL GPS

The TP-GPS *Not included in this kit but available as a separate purchase option. This feature automatically silences the alarm after 5 seconds of activation when the bucket is raised. It also records time, date, and GPS location whenever events are logged in our black box system. Additionally, it can trigger speed-based alarms, suspension drop alerts, and other customizable notifications. All settings are fully programmable and user-adjustable.

Speed Detection ICON TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik SPEED DETECTION:
Fully adjustable: 3, 6, 9, 12 km/h
Programable User Options Preferences ICON TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik PROGRAMMABLE OPTIONS:
Via user's computer
Black Box ICON TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik BLACK BOX:
Event recording system
TP DM Icon Large
NEW *OPTION AVAILABLE !

POD DASH BUTTON

*Not included in this kit but available as a separate purchase option. Most new kits include an illuminated buzzer button that can be installed anywhere on or around your dashboard with a simple drilled hole for seamless integration. The Pod Dash Button mounting bracket eliminates the need for drilling by housing your button in a dashboard mount that can be positioned anywhere you prefer. Simply connect the wires to your TipTronik box and place the button at any convenient location on or around the driver's dashboard. Also, this Pod Dash Button simplify operation and understanding system status for users and/or technicians with a color-coded indication system.

GREEN: System powered and connected to a sensor (Wi-Fi or wired synchronization)
BLUE: System powered and connected to two sensors (Wi-Fi or wired synchronization)
YELLOW: System powered but not connected to a sensor (Wi-Fi or wired synchronization)
RED: System in diagnostic mode with error codes. (ex: 21 = Dumpster raised, 22 = Sensor disconnected, 41 = In synch mode, etc..)
WHITE: Programming mode
*Add it from it's own page, or via "Seprarated Items" and "Additional & Compatible parts" of product and kit pages with SKU# ending with "D". (ex.: TP4-GD is a Gold model kit that include this Pod Dash Button.)

ADD ITEMS SEPARATELY FROM THIS KIT


COMPLETE YOUR KIT

ADD AVAILABLE & COMPATIBLE PRODUCTS THAT ARE NOT INCLUDED IN THIS KIT


ADDITIONAL INFORMATION

PRODUCT LINE CONSOLIDATION
& COMPATIBILITIES

TP4 : THE UNIVERSAL SOLUTION !
The TP4 replaces both TP2 and TP3 models with a single solution for all vehicle types. Compatible with existing TP2-TP3 systems, accessories, and both wired and wireless setups, the TP4 adapts to dump trucks and straight trucks based on operational requirements.

CAB INSTALLATION

The installation of our TipTRONIK is truly one of the easiest and fastest in its class. For a quick installation, everything is included in the box. Just pick your favorite spot around or inside the console of the truck and plug it into an ignition type power source. Choose where you want to place the contactless sensor and connect it to the TipTRONIK module and your installation is complete. *Note that with a mobile kit, you can install a truck and synch a trailer in seconds !

Approved Certified Icon TipTronik Trailer Dumper Box Tipper Raised Alarm GPS WIFI Revtronik

APPROVED
INSTALLATIONS

While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.

FIND YOUR AUTHORIZED DISTRIBUTOR
IN ONE CLICK


Map Pin Revtronik

Weight 2 lbs
Dimensions 6 × 8 × 1.5 in
COMPATIBLE

Wireless sys. only.
In the box

• TP4 module box
• 12v Power wire and illuminated buzzer button

Additional & compatible parts, brackets and protections
