WIFI TP4-GD +GPS
STANDARD DUMP TRUCK

DESIGNED TO BE USED WITHOUT PUP TRAILER

*If you are considering adding a pup trailer to the dump truck, choose WITH PUP TRAILER kit designed specifically for dump truck with pup trailer. Even without the use of trailers, the TP4 version offers interesting advantages such as Wifi communication which allows the module to be programmed remotely with a computer, to make updates, to activate or deactivate options as well as other functionalities. coming. (scalable)

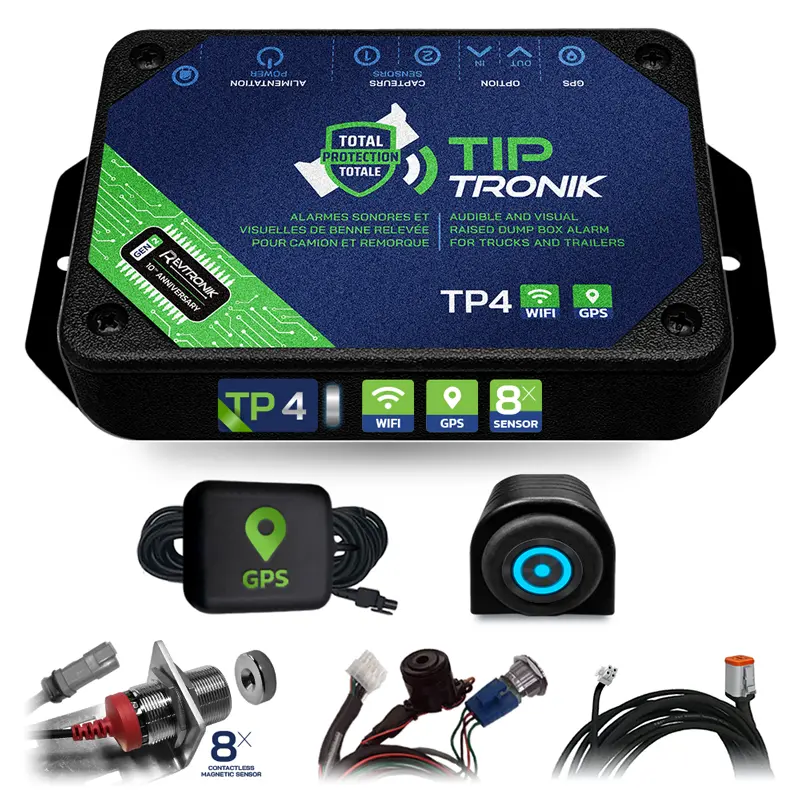

TP4-GD INCLUDES

The TP4 module box with two sets of wiring available for quick and easy installation, the GPS, the Pod Dash Button, the Contactless Sensor and it’s Bracket Support, the Power Cable and the user manual and vehicle compliance decals. It’s also possible to put a wired installation to have a hybrid system working with or without wire.*Note that you can add Other items of this kit or Compatible product line individually below on this page to complete your needs.

✔︎ NEWEST GENERATION

ABOUT THE TP4

A NEW GENERATION of audible and visual alarms for raised dumpsters, developed as part of our GEN2 program. Our best seller TP4 is based on the largest truck industry user's EXPERIENCES AND FEEDBACK of our past TP2 & TP3 product lines history that is currently combined to all the advantages of our newest technology development!

CLIC ICONS FOR MORE..	TP4 TECHNICAL FEATURES
	POD DASH BUTTON: Audible and multi-color illuminated Pod Dash Button for ease of use and installation on the dashboard.
	SPEED DETECTION & BLACK BOX: Adjustments : 3, 6, 9, 12 km/h. Improved event recording system as aircraft black box systems.
	UPDATES & USER PREFS: New smartphone simplified update and programming system. LATEST GEN2 WIFI: No wires between truck & trailer !
	SENSORS: NEW 8X MAGNETIC SENSORS instead of a contactless sensor, allowing us to extend the operating range by nearly ten times that of our previous sensors.
	IN/OUT:    ⍇ 2 PROGRAMMABLE  INPUTS  ⍈ *OPTIONAL 2 PROGRAMMABLE OUTPUTS.



THE NEW CONTACTLESS

8X MAGNETIC SENSOR

The NEW CONTACTLESS 8X MAGNETIC SENSORS instead of a contactless mechanical or optical sensors, provide a larger extended operating range by nearly ten times of our previous sensors. It is not mechanical or optical and it conforms, and even more, exceeds all of North America's highest and official regulations. More flexible on installation options of optimal security coverage of raised dump box alarms!

THE

GPS

This feature automatically silences the alarm after 5 seconds of activation when the bucket is raised. It also records time, date, and GPS location whenever events are logged in our black box system. Additionally, it can trigger speed-based alarms, suspension drop alerts, and other customizable notifications. All settings are fully programmable and user-adjustable.

	SPEED DETECTION: Fully adjustable: 3, 6, 9, 12 km/h
	PROGRAMMABLE OPTIONS: Via user's computer
	BLACK BOX: Event recording system

THE

WIFI

NO MORE WIRE BETWEEN TRUCK AND TRAILER !
The primary advantage of installing a wireless wifi system with TP4 in your truck is the ability to sync any trailer in under 15 seconds using the truck's sync button. For drivers without an installed system who need to use your trailer, the Portable Edition can be mounted in any truck in less than 15 seconds ensuring lightning-fast setup every time.

REMOTE COMMUNICATION
In addition to the simplicity of a wireless system, the wifi allows remote communication with the module box, even without a synched trailers, it's possible to program the system remotely from smartphones or computer for updates, user options and system activations parameters. TP4 is scalable and will follow you for a long time!

THE NEW

POD DASH BUTTON

Most new kits include an illuminated buzzer button that can be installed anywhere on your dashboard with a simple drilled hole for seamless integration. The Pod Dash Button mounting bracket eliminates the need for drilling by housing your button in a dashboard mount that can be positioned anywhere you prefer. Simply connect the wires to your TipTronik box and place the button at any convenient location on or around the driver's dashboard. Also, this Pod Dash Button simplify operation and understanding system status for users and/or technicians with a color-coded indication system.

	GREEN: System powered and connected to a sensor (Wi-Fi or wired synchronization)
	BLUE: System powered and connected to two sensors (Wi-Fi or wired synchronization)
	YELLOW: System powered but not connected to a sensor (Wi-Fi or wired synchronization)
	RED: System in diagnostic mode with error codes. (ex: 21 = Dumpster raised, 22 = Sensor disconnected, 41 = In synch mode, etc..)
	WHITE: Programming mode
*Add it from it's own page, or via "Seprarated Items" and "Additional & Compatible parts" of product and kit pages with SKU# ending with "D". (ex.: TP4-GD is a Gold model kit that include this Pod Dash Button.)
