• Place and secure the illuminated buzzer button in the TP-DM pod dash button.
• Connect the wires to your TipTronik module box.
• Place your new button anywhere on or around the driver’s dashboard.

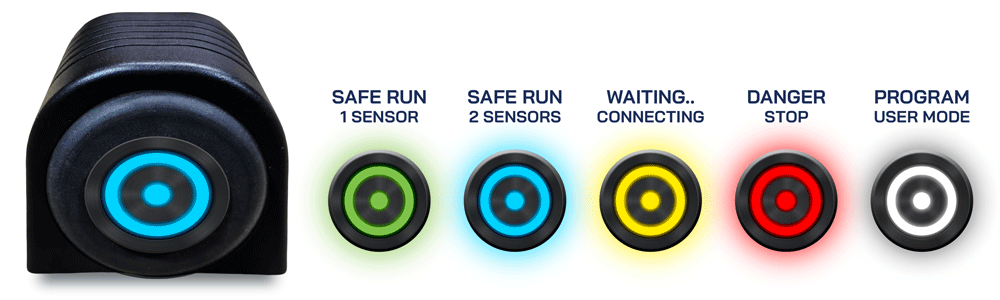

Most new kits include an illuminated buzzer button that can be installed anywhere on your dashboard with a simple drilled hole for seamless integration. The Pod Dash Button mounting bracket eliminates the need for drilling by housing your button in a dashboard mount that can be positioned anywhere you prefer. Simply connect the wires to your TipTronik box and place the button at any convenient location on or around the driver's dashboard. Also, this Pod Dash Button simplify operation and understanding system status for users and/or technicians with a color-coded indication system.
 |
GREEN: System powered and connected to a sensor (Wi-Fi or wired synchronization) | |
 |
BLUE: System powered and connected to two sensors (Wi-Fi or wired synchronization) | |
 |
YELLOW: System powered but not connected to a sensor (Wi-Fi or wired synchronization) | |
 |
RED: System in diagnostic mode with error codes. (ex: 21 = Dumpster raised, 22 = Sensor disconnected, 41 = In synch mode, etc..) | |
 |
WHITE: Programming mode |
|
| *Add it from it's own page, or via "Seprarated Items" and "Additional & Compatible parts" of product and kit pages with SKU# ending with "D". (ex.: TP4-GD is a Gold model kit that include this Pod Dash Button.) | ||
While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.
| Compatible | TP2, TP3 and TP4 series. |
|---|
