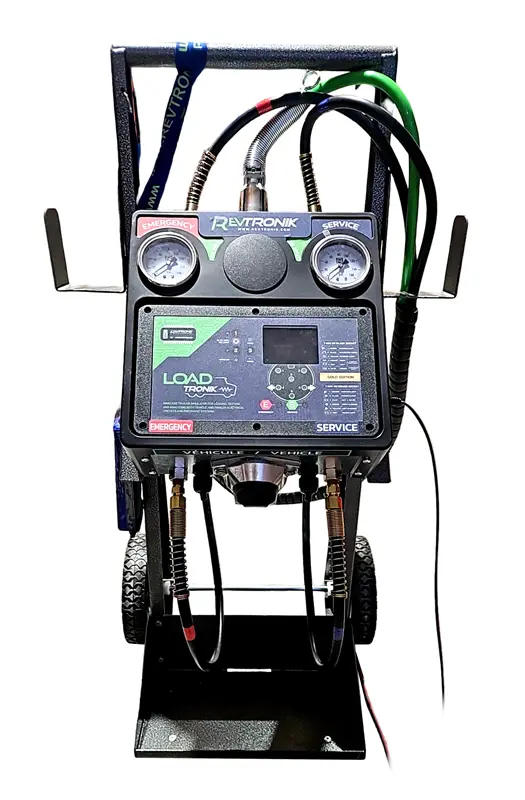

LD1 CART BACK LoadTRONIK Electrical Pneumatic Wireless Bi Directionnal Trailer Simulator RevTronik

LD1 CART FRONT LoadTRONIK Electrical Pneumatic Wireless Bi Directionnal Trailer Simulator RevTronik

Add to your Quote Request List

SKU: LD1-BEC

PRODUCT DETAILS

LD1-BEC LOADTRONIK ELECTRICAL BRONZE ON CART

THE NEW

LOADTRONIK

Trailer Simulator for Automobiles, Recreational Vehicles, and Trucks with Optional Wireless Remote Control, Including Electrical and/or Pneumatic Circuit Diagnostic System.

The LoadTRONIK trailer simulator is designed to simulate trailer usage on vehicles, with or without wireless remote control capabilities, and incorporates a comprehensive diagnostic system for electrical and/or pneumatic trailer circuits. Depending on the selected model, the unit may also be utilized in series configuration between the vehicle and trailer.

LoadTRONIK enables the simulation of trailer operation on a vehicle by generating an electrical current load within the circuit. The precision digital displays or analog screen provide highly accurate real-time readings of current consumption and voltage levels. The system facilitates rapid diagnosis of circuit anomalies, including wire breaks, crossed wiring, or improper connections. The wireless remote control functionality enables operators to conduct analyses directly at hand, providing immediate control over test results. The integrated color digital display on the remote control allows for comprehensive remote testing and monitoring capabilities. Operators may remain seated within the vehicle, activate lighting systems, and receive instantaneous diagnostic feedback without exiting the vehicle.

When deployed in series configuration, the system provides real-time monitoring of voltage transmitted to the trailer as well as current consumption across individual circuits. The unit enables the addition of supplementary current loads to verify the vehicle's capacity to supply increased current demands to a trailer. In the pneumatic version, the system additionally controls the activation of trailer pneumatic circuits, with or without remote control functionality.

LoadTRONIK is available in electric-only configuration (E) or combined electrical and pneumatic configuration. Multiple models are offered: Bronze basic edition (B), Silver edition with color display (A), and Gold edition featuring color displays on both the main unit and wireless remote control (G).

3 DIFFERENT

MODEL RANGES

THE BRONZE EDITION features a standard digital display for monitoring either voltage or current consumption, requiring manual selection between the two parameters. The current load of approximately 8 amperes must also be activated or deactivated manually. LED indicator lights enable visual identification of activated circuits and detection of crossed wires or improper connections. The Bronze version supports LoadTRONIK operation on the vehicle only, enabling trailer connection simulation and electrical circuit quality analysis.

THE SILVER EDITION features an integrated color digital display for simultaneous monitoring of voltage and current. This display enables the generation of error messages and utilizes color coding to provide simplified and expedited identification of activated functions and detected issues. The unit retains the fundamental functions of the Bronze model, including manual control of the current load of approximately 8 amperes, as well as integrated LED indicator lights to identify activated circuits and detect crossed wires or improper connections.

Additionally, this version enables LoadTRONIK operation in series configuration, facilitating real-time monitoring of trailer current consumption and actual voltage delivered to the trailer. The system allows for deliberate overloading of the combined vehicle and trailer assembly, enabling more comprehensive analysis of the vehicle's capacity to supply the electrical power required for proper trailer operation. *In the pneumatic version, manual control of trailer air system activation is available.

THE GOLD EDITION represents the most efficient diagnostic tool available for comprehensive analysis of vehicle electrical and pneumatic circuits by incorporating all functionalities of the Silver model and additionally, including our wireless remote control. Our integrated Wi-Fi and Bluetooth technology enables pairing with our wireless remote control, which features a color display and analog pressure sensors for enhanced precision and increased operational efficiency.

Operators may remain seated within the vehicle, activate desired electrical and pneumatic circuits, and view results directly on the wireless remote control's color display. All error messages displayed on the main unit screen are simultaneously transmitted to the remote control display. The wireless remote control additionally enables remote activation of trailer braking and suspension systems, as well as remote air pressure monitoring.

TECHNICAL DESIGN OF THE

ELECTRICAL MODEL

ELECTRICAL CIRCUIT ANALYSIS AND CONTROL: All circuit readings and activations are accessible on the unit through indicator lights and/or the integrated display, depending on the selected model. Identical information is also available directly on the wireless remote control display.

Simulate or monitor an average current consumption of 8 amperes across electrical circuits
Monitor voltage readings
Monitor current consumption readings
Diagnose electrical circuits for crossed wires, wire breaks, and faulty connections

TECHNICAL DESIGN OF THE

PNEUMATIC & ELECTRIC MODEL

PNEUMATIC CIRCUIT ANALYSIS AND CONTROL: All circuit readings and activations are accessible on the unit through gauges, indicator lights, and/or the integrated display, depending on the selected model. Identical information is also available directly on the wireless remote control display.

Continuous air pressure verification and monitoring.
Manual or remote activation of pneumatic circuits via wireless remote control.
Air leak detection.

ELECTRICAL

-VS- PNEUMATIC & ELECTRIC

THE ELECTRICAL MODEL [E]

LoadTRONIK E enables the simulation of trailer electrical connection usage on a vehicle, facilitating comprehensive analysis and current load application as required. The unit may be operated independently or deployed in series configuration between the vehicle and trailer for complete real-time analysis. An additional functionality allows the unit to serve as a diagnostic tool for evaluating electrical harness quality when paired with our TestTRONIK trailer verification device or when connected directly to a vehicle.

It also features a greater number of electrical connections than the pneumatic version, as it is primarily designed for recreational vehicle and residential applications. The unit is engineered to verify small residential trailers with standard 4-pin round connectors, 7-pin flat electrical connectors utilized on trailers equipped with electric and/or hydraulic braking systems (commercial trailers, RVs, etc.), and the standard 7-pin round connector for heavy-duty vehicle trailers.

THE DUAL ELECTRIC AND PNEUMATIC MODELS [EP]

LoadTRONIK EP incorporates all functionalities of the electric version; however, as it is primarily utilized in the heavy-duty vehicle sector, it has been designed with fewer integrated electrical adapters. Nevertheless, the unit provides comprehensive verification of pneumatic components connecting the vehicle to a trailer. Depending on the selected model, it may also be operated independently or deployed in series configuration between the vehicle and trailer for complete real-time analysis. When utilized in series mode, pneumatic system activation may be controlled manually or via remote control, depending on the chosen version. *The majority of existing adapters on the market are compatible with LoadTronik modules, allowing the analysis capabilities to be extended to a wider range of trailers and vehicles!

COMPATIBILITIES

*The majority of existing adapters on the market are compatible with LoadTronik modules, allowing the analysis capabilities to be extended to a wider range of trailers and vehicles !

LOADTRONIK

MODEL'S COMPARISON CHART

.

ADD ITEMS SEPARATELY FROM THIS KIT

COMPLETE YOUR KIT

ADD AVAILABLE & COMPATIBLE PRODUCTS THAT ARE NOT INCLUDED IN THIS KIT

ADDITIONAL INFORMATION

INSTALLATION
SPECS

BRONZE

ELECTRIC USAGE

The use of the electric LoadTRONIK Bronze allows you to simulate a current load in your electrical wiring even if you do not have a vehicle (trailer) available. The average added current load is 8amp+ or -. With to your device, you will be able to see the current as well as the voltage of each activated circuit, you will also be able to see which circuit is activated and if a wire touches another wire with the lights integrated on the box.

The Electric Bronze Edition is our entry-level device and does not have a wireless remote control. This device can only be used on the vehicle; it cannot be used in series between the vehicle and the trailer. Only Silver and Gold editions with remote control can. It is possible to connect the device to an external voltage source with the optional adapters available. *The Gold Edition also allows you to control these features through the wireless remote control and see all this data directly in your hand. The color display of the silver and gold model allows you to see the current and voltage simultaneously, which is not possible with the Bronze edition. *See more and full details in user manuals.

APPROVED
INSTALLATIONS

While our system features straightforward and rapid installation, we strongly recommend professional installation by a certified technician for optimal safety and performance. With over 200 Authorized RevTronik Distributors across Canada, there’s likely a qualified installer in your area ready to help.

FIND YOUR AUTHORIZED DISTRIBUTOR
IN ONE CLICK

Map Pin Revtronik

Weight	3 lbs
Dimensions	12 × 12 × 4 in
